Neodymium Pot Magnets with Internal Threaded Stud

Name: Neodymium Pot Magnets with Internal Threaded Stud
Brand: Ningbo Beilun Meank Magnetics Co.,Ltd.

Neodymium pot magnets (also called neodymium cup magnets) are steel/iron shells housed in neodymium magnets. For the convenience of mounting and use, there are different designs for the iron shell, including with internal thread stud/stem, internal threaded bushing/socket, external thread stud/boss mounting, with threaded socket.

The neodymium pot/cup magnets with internal/female threaded stud/bushing/socket are called internal (female) thread neodymium pot magnets. Thanks to the scientific magnetic circuit design, the internal thread neodymium pot magnets have the characteristics of small volume and strong magnetic force. The improved magnetic circuit design allows the required holding force to be achieved through the minimum size. Because of the threaded stud/boss mounting, the internal neodymium pot (cup) magnet is easy to install and flexible to use. You put the internally threaded stem through an object with a hole, and then fix the neodymium magnet with a threaded stud with a nut.

The surface of neodymium pot magnets with external threaded stem/boss mounting can be galvanized, nickel, chromium, and spray paint treatment.

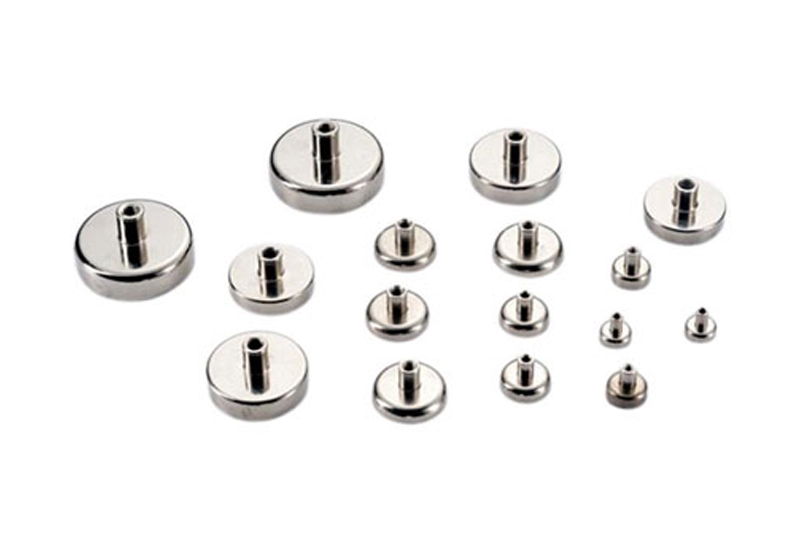

neodymium pot magnets with internal threaded stud

Summary Of Internal Threaded Neodymium Pot Magnets:

Component Material: neodymium disc magnets + A3 steel cup with internally threaded stem + ABS plastic ring or epoxy glue

Available Surface Treatment: Nickel, Zinc, spray colorful plastic

Standard Size: diameter-- 16mm, 20mm, 25mm, 32mm,36mm,42mm,48mm,60mm,75mm

Magnetic Grade：N35, N38, N40, N42, N45,N48,N50,N52

Working Temp.: -40 to 80℃（for standard ones), the pot magnets higher for working temperature can be customized

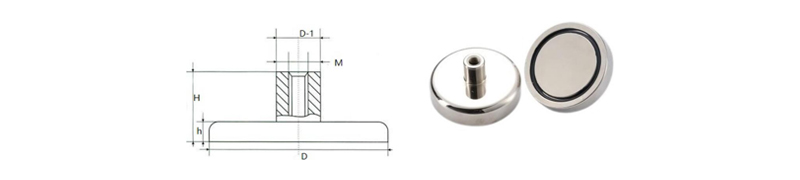

Parameter Of Standard Internal Threaded Stud Neodymium Pot Magnets

Neodymium Pot Magnets with Internal Threaded Stud

Item Code	D	D1	M	H	h	Attraction(kg)	Dead Weight(g)
NdFeB-D16	16	6	4	13	5	5.5	8
NdFeB-D20	20	8	4	15	7	9	17
NdFeB-D25	25	10	5	17	8	22	32
NdFeB-D32	32	10	6	18	8	34	47
NdFeB-D36	36	10	8	18	8	41	59
NdFeB-D42	42	12	8	20	9	68	87
NdFeB-D48	48	12	8	24	11.5	81	132
NdFeB-D60	60	14	10	30	15	113	259
NdFeB-D75	75	14	10	34	18	164	546

Remind: Although the surface of the neodymium pot(cup )magnet with internally threaded stem has been anti-rust treated with electroplating, if it is not used and stored properly, it will still rust. Please store neodymium pot magnets in a dry and room temperature environment, preferably in a sealed bag.

Applications Of Neodymium Pot Magnets With External(male) Threaded Stud

Neodymium pot magnets with threaded studs can be used as magnetic holders for doors, cabinets, and ceiling,

Neodymium pot magnets with threaded studs can be used for magnetic clamping of signs, banners, and fixtures.

Neodymium pot magnets with threaded studs can be used as mounting magnets for lighting and exhibition tools.

As a wholesale pot magnet supplier, our strong & large neodymium pot magnets with internal threaded stem/stud can be used for deepwater magnet fishing.

We Also Customize Neodymium Mounting Pot Magnet With External Threaded Stem Of Other Magnetic Material

We customize Samarium-Cobalt (SmCo) pot magnet with an internally threaded stem.

We have ceramic pot magnets with an internal (female) threaded stem for sale

Our china neodymium pot magnet manufacturer can supply AlNiCo pot magnets with the female threaded mounting stem.

Where To Order High-Quality Internal Threaded Cup Magnets Of Neodymium?

Mean offers reasonable prices for internal thread neodymium pot magnets for worldwide customers, our internal threaded stud neodymium pot magnets are of high quality and used in all applications, including clamping, hanging, mounting, fishing, advertising, organizing, and so on. Send us to inquire about common and custom female thread neodymium cup magnets.

Order Internal Thread Neodymium Pot Magnets From Meank For A Better Deal!

We produce neodymium cup magnets with threaded studs according to the customer's specifications. We have made a lot of customized neodymium pot magnets with internally threaded stems for customers all over the world. We have the ability to produce neodymium pot (cup)magnets with different magnetism, pole orientation, size, shape, and a protective coating. We can also produce internal thread pot magnets of AlNiCo, ceramic (ferrite), and SmCo materials. If you have any special requirements, please contact us. The lowest and fairest price is possible if you need a big quantity of internal thread neodymium mounting magnets.

Two Edge Versions for Inxternal (female) Threaded Stem

Version for punching machine

Version for turning machine
