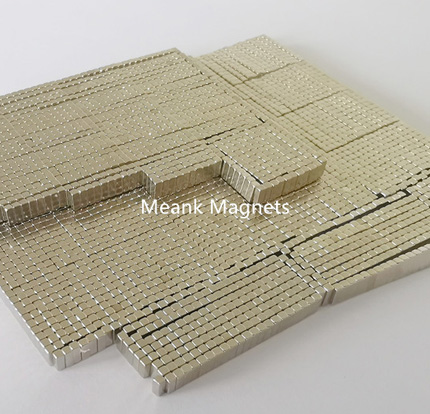

Neodymium Cube Magnets

The sintered NdFeB magnets that have the same size on length, width, and height are called strong neodymium(NdFeB) cube magnets, which can be understood as special neodymium block magnets.



Surface Treatment of Strong Neodymium Cube Magnets


Neodymium(NdFeB) cube magnets have super powerful magnetism, but they are easy to corrode, so their surface needs to be coated, generally including zinc plating, nickel, environmental protection zinc, environmental protection nickel, nickel copper-nickel, environmental protection nickel copper-nickel, epoxy coating, etc.


Surface

Coating

Thickness (Microns)

Color

Resistance

Passivation


1

Silver Grey

Temporary Protection

Nickel

Ni+Ni

10-20

Bright Silver

Excellent Against Humidity

Ni+Cu+Ni

Good Against Salt Spray

Zinc

Zn

8-20

Bright Blue

Excellent Against Salt Spray

C-Zn

Shinny Color

Superior Against Humidity

Tin

Ni+Cu+Sn

15-20

Silver

Superior Against Humidity

Silver

Ni+Cu+Ag

10-20

Silver

Superior Against Humidity

Gold

Ni+Cu+Au

10-20

Gold

Temporary Protection

Copper

Ni+Cu

10-20

Gold

Excellent Against Humidity&Salt Spray

Epoxy

Epoxy

15-25

Black,Red,Grey

Excellent Against Humidity,Salt Spray,Superior Against Solvents,Gases, Fungi and Bacteria,FDA Approved

Ni+Cu+Epoxy

Excellent Against Humidity

Zn+Epoxy


Parylene

Parylene

5-20

Grey

Excellent Against Humidity

Chemical

Ni

10-20

Silver Grey

Excellent Against Humidity



Custom Rare Earth Cube Magnets


Neodymium cube magnets are non-standard rare earth cube magnet for industry,due to sintered Nd-Fe-B material has good machinability and can be customized into different sizes of neodymium(NdFeB) cube magnets, the exact mould is not demanded for customizing strong neodymium cube magnets.You can order tiny and large neodymium cube magnets for any quantity from us.


Maximum Working Temperature for Each Grade of Strong NdFeB Cube Magnets


Neodymium Material Grade

Maximum Working Temp.

Curie Temp.

N(N35,N38,N40,N42,N45,N48,N50,N52)

176°F (80°C)

590°F (310°C)

N-M(N35M,N38M,N40M,N42M,N45M,N48M,N50M,N52M)

212°F (100°C)

644°F (340°C)

N-H(N35H,N38H,N40H,N42H,N45H,N48H,N50H)

248°F (120°C)

644°F (340°C)

N-SH(N35SH,N38SH,N40H,N42SH,N45SH,N48SH)

302°F (150°C)

644°F (340°C)

N-UH(N28UH,N30UH,N33UH,N35UH,N38UH,N40UH,N42UH)

356°F (180°C)

662°F (350°C)

N-EH(N28EH,N30EH,N33EH,N35EH,N38EH,N40EH)

392°F (200°C)

662°F (350°C)

N-AH(N28AH,N33AH,N35AH,N38AH)

428°F (230°C)

662°F (350°C)
