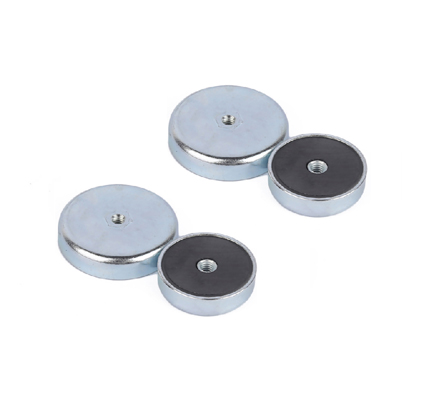

A ferrite disc magnet housed in a cup or pot shape ferromagnetic iron shell that with a female threaded bushing is shorted as internal(female) threaded ferrite pot magnets. The internal thread steel cup not only ensures the safety of the ferrite disc magnet from damage but also strengthens the magnetic force. Due to the use of steel shells, only one magnetic surface can be used for working, and the other surface is steel and metal iron. Because of the internal thread bushing, the steel hook and eyelet can be screwed on the internal thread ferrite cup magnet.
All ferrite pot magnets with internal（female）threaded stem are assembled with anisotropic ferrite disc magnets. Our ferrite cup magnets may be even stronger! The steel cup can be made with chrome-plated, nickel-plated, zinc coated, and paint coated, even rubber coated. The below table shows the standard models of internally threaded ferrite pot magnets.
Model | Dimension | Pull Force (N) | ||||
D(mm) | d(mm) | H(mm) | h(mm) | M(mm) | ||
Ferrite-D-10 | 10 | 6 | 11.5 | 4.5 | M3 | 4 |
Ferrite-D-13 | 13 | 6 | 11.5 | 4.5 | M3 | 10 |
Ferrite-D-16 | 16 | 6 | 11.5 | 4.5 | M3 | 18 |
Ferrite-D-20 | 20 | 6 | 13 | 6.0 | M3 | 30 |
Ferrite-D-25 | 25 | 8 | 15 | 7.0 | M4 | 40 |
Ferrite-D-32 | 32 | 8 | 15 | 7.0 | M4 | 80 |
Ferrite-D-36 | 36 | 8 | 16 | 8.0 | M4 | 10.0 |
Ferrite-D-40 | 40 | 10 | 18 | 8.0 | M5 | 125 |
Ferrite-D-47 | 47 | 8 | 17 | 9.0 | M4 | 180 |
Ferrite-D-50 | 50 | 12 | 22 | 10.0 | M6 | 220 |
Ferrite-D-57 | 57 | 8 | 18.5 | 10.5 | M4 | 280 |
Ferrite-D-63 | 63 | 15 | 30 | 14.0 | M8 | 350 |
Ferrite-D-80 | 80 | 20 | 34 | 18.0 | M10 | 600 |
Ferrite-D-100 | 100 | 22 | 43 | 22.0 | M12 | 900 |
Ferrite-D-125 | 125 | 25 | 50 | 26.0 | M14 | 1300 |
Contact us now for common and custom internal thread ferrite pot(cup) magnets, and know the internal thread pot magnets of neodymium for the strongest magnetic force. Please tell us the quantity and magnetic force requirement for a quotation.
Such ferrite pot magnets with internally threaded stem can be used as magnetic hooks for hanging
Such ferrite cup magnets with female threaded screw sockets can be used as magnetic bases for mounting.
The large internal(female) threaded ferrite pot magnets can be used as salvage magnets for magnet fishing.
