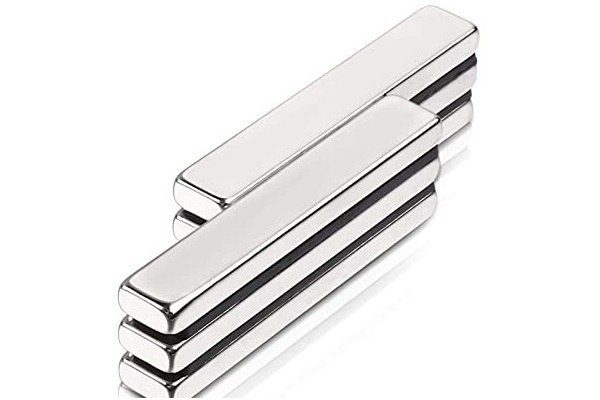

Neodymium Bar Magnets

The thin&long neodymium rectangle magnets are give another name of strong neodymium(NdFeB) bar or strip magnets, The same as normal block(rectangular) neodymium magnet, neodymium bar and strip magnets also expressed by length(L) x width(W) x thickness(T).



Surface Treatment of Strong Rare Earth NdFeB Bar Magnets

Strong neodymium(NdFeB) bar magnets are easy to corrode, and their surface needs to be coated, generally including zinc plating, nickel, environmental protection zinc, environmental protection nickel, nickel copper-nickel, environmental protection nickel copper-nickel, epoxy coating, etc.


Surface

Coating

Thickness (Microns)

Color

Resistance

Passivation


1

Silver Grey

Temporary Protection

Nickel

Ni+Ni

10-20

Bright Silver

Excellent Against Humidity

Ni+Cu+Ni

Good Against Salt Spray

Zinc

Zn

8-20

Bright Blue

Excellent Against Salt Spray

C-Zn

Shinny Color

Superior Against Humidity

Tin

Ni+Cu+Sn

15-20

Silver

Superior Against Humidity

Silver

Ni+Cu+Ag

10-20

Silver

Superior Against Humidity

Gold

Ni+Cu+Au

10-20

Gold

Temporary Protection

Copper

Ni+Cu

10-20

Gold

Excellent Against Humidity&Salt Spray

Epoxy

Epoxy

15-25

Black,Red,Grey

Excellent Against Humidity,Salt Spray,Superior Against Solvents,Gases, Fungi and Bacteria,FDA Approved

Ni+Cu+Epoxy

Excellent Against Humidity

Zn+Epoxy


Parylene

Parylene

5-20

Grey

Excellent Against Humidity

Chemical

Ni

10-20

Silver Grey

Excellent Against Humidity


Magnetization Direction of Powerful & Strong Neodymium Magnet Bars

The magnetized direction of powerful neodymium(NdFeB) bar&strip magnets can be magnetized through all directions, which is determined according to the required working face. Please let us know the magnetization direction when sending us an inquiry.


Custom Strong Neodymium(NdFeB) Strip Magnets

Neodymium bar&strip magnets are non-standard products, rare earth NdFeB magnets are made according to customers' needs. Sintered neodymium material has good machinability and can be machined into different sizes of neodymium(NdFeB) bar magnets, mould is not needed for customizing strong neodymium bar or strip magnets. We can make tiny and large neodymium bar magnets for any quantity.


Maximum Working Temperature for Each Grade of Simple Bar Shaped Magnet

Neodymium Material Grade

Maximum Working Temp.

Curie Temp.

N(N35,N38,N40,N42,N45,N48,N50,N52)

176°F (80°C)

590°F (310°C)

N-M(N35M,N38M,N40M,N42M,N45M,N48M,N50M,N52M)

212°F (100°C)

644°F (340°C)

N-H(N35H,N38H,N40H,N42H,N45H,N48H,N50H)

248°F (120°C)

644°F (340°C)

N-SH(N35SH,N38SH,N40H,N42SH,N45SH,N48SH)

302°F (150°C)

644°F (340°C)

N-UH(N28UH,N30UH,N33UH,N35UH,N38UH,N40UH,N42UH)

356°F (180°C)

662°F (350°C)

N-EH(N28EH,N30EH,N33EH,N35EH,N38EH,N40EH)

392°F (200°C)

662°F (350°C)

N-AH(N28AH,N33AH,N35AH,N38AH)

428°F (230°C)

662°F (350°C)
