Counterbore Neodymium Shallow Pot Magnets

Name: Counterbore Neodymium Shallow Pot Magnets
Brand: Ningbo Beilun Meank Magnetics Co.,Ltd.

Beilun Meank is a professional wholesale pot magnet manufacturer and wholesale pot magnet supplier that provides powerful wholesale pot magnet. The magnet assembly that a NdFeB ring magnet housed in a flat steel shell (there is a hole in the center of the shell) is known as a counterbore neodymium shallow pot/cup magnet. Because of the hole, it is easy to be installed and called a mountable neodymium cup magnet. The flat neodymium shallow pot magnets with cylindrical mounting holes are used for mounting various equipment and are known as NdFeB /neodymium mounting magnets. Contact us for more information of china countersunk pot magnet.

counterbore neodymium shallow pot magnets 1

Summary Of Counterbore Neodymium Shallow Pot Mounting Magnets:

Component Material: neodymium ring magnets + A3 steel cup + ABS plastic ring or epoxy glue

Available Surface Treatment: Nickel, Zinc, spray colorful plastic

Standard Size: diameter-16mm, 20mm, 25mm, 32mm,36mm,42mm,48mm,60mm,75mm

Magnetic Grade: N35, N38, N40, N42, N45,N48,N50,N52

Working Temp.: -40 to 80℃（for standard ones), the pot magnets for higher working temperature can be customized

Specifications Of NdFeB Ring Mounting Magnets With Cups (counterbore Neodymium Shallow Pot Magnets)

Counterbore Neodymium Mounting Magnets.jpg

Model	D	D1	D2	H	Pull Force(kg)	Dead Weight(g)
NdFeB-B16	16	3.5	6.5	5	4	6
NdFeB-B20	20	4.5	8	7	6	12
NdFeB-B25	25	5.5	9	8	14	23
NdFeB-B32	32	5.5	9	8	23	36
NdFeB-B42	42	6.5	11	9	32	73
NdFeB-B48	48	8.5	15	11.5	63	114
NdFeB-B60	60	8.5	15	15	95	240
NdFeB-B75	75	10.5	18	18	155	471

Note: standard neodymium cup mounting magnets with cylindrical mounting holes are with a grade of N35 and Nickel coating unless customers have another requirement of wholesale pot magnet.

Characteristics Of Counterbore Neodymium Shallow Cup/pot Magnets:

Due to the steel shell, as a new type of ring magnet with steel cup covered, the whole magnetic systems that our wholesale pot magnet supplier offers have several times the magnetic holding force of the naked NdFeB ring magnets. With steel shell covered, the neodymium magnets are durable. NdFeB counterbore cup/pot magnets are used for heavy-duty applications. The working surfaces of cylindrical hole neodymium mounting magnets are on the north pole side, which is compact and practical for integrating into your projects. The central through mounting hole of the neodymium cup/pot mounting magnets are suited for nails and screws, so the counterbore neodymium pot magnets are mountable and can be easily installed for any holding application. The uses of neodymium counterbore cup magnets with cylindrical holes are similar to countersunk neodymium cup mounting magnets.

Common Uses and applications Of Counterbore Neodymium Shallow Cup/pot Magnets

1. Counterbore neodymium shallow pot/cup magnets are used for clamping tools.

2. Countersbore neodymium mounting magnets are used for shelf displaying.

3. Neodymium shallow cup magnets with cylindrical mounting holes are used for the temporary fixing of instruments.

4. Neodymium mounting magnets with counterbore holes are used as magnetic bases for holding applications.

5. Neodymium mountable magnets can be used as magnetic connectors

Advantages Of Neodymium Cup Magnets With Cylindrical Mounting Hole

1. Neodymium cup mounting magnets cylindrical holes can be used for heavy-duty applications.

2. Installation of our wholesale pot magnets with cylindrical holes is easier.

3. The applications of neodymium cup mounting magnets with cylindrical mounting holes are multiple.

4. Various sizes selection can be provided for neodymium cup magnets with cylindrical holes.

5. With a cylindrical hole design, the fastener is not in direct contact with the ring magnets, it effectively avoids the damage caused by excessive force on the neodymium mounting magnets.

Contact Us For Customizing Neodymium Counterbore Neodymium Cup Magnets:

As a professional neodymium wholesale pot magnet manufacturer in China, Beilun Meank supplies high-performance rare earth neodymium wholesale pot magnet with steel cups. If no standard neodymium cup/pot magnets with cylindrical mounting holes from the table can meet your needs, please contact us for customizing.

Two Versions of Counterbore Neodymium Cup Magnets Are Available to Meet the Different Preferences of Customers

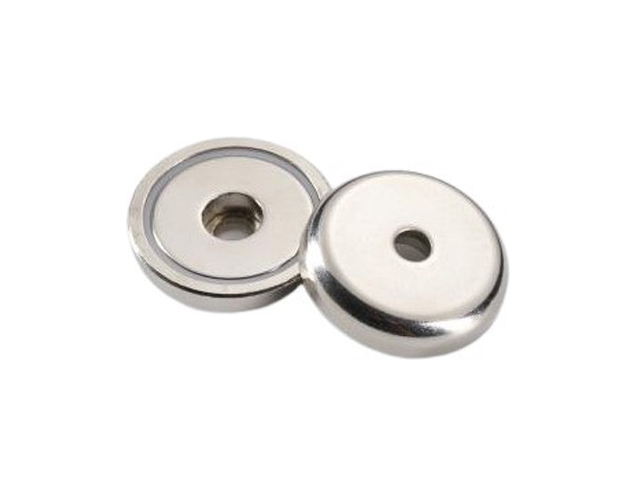

The steel cups are machined with punching machine

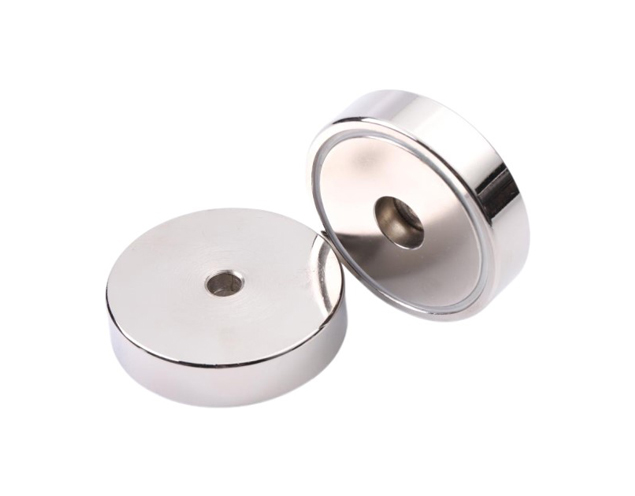

The steel cups are machined with turning machine
