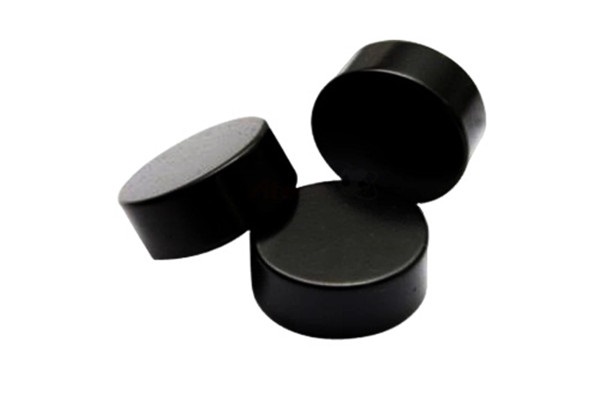

Neodymium Disc Magnets

Name: Neodymium Disc Magnets
Brand: Ningbo Beilun Meank Magnetics Co.,Ltd.

The flat and round shape strong NdFeB magnets are give the name of neodymium disc magnets, the size of diameter is larger than its thickness. Neodymium disc magnets are the preferred magnetic product in both industrial and consumer applications.

Due to their versatility and cost-effectiveness, these round rare earth magnets dominate the market and various industries as the most commonly used powerful magnet type. They are extensively employed in electric motors, speakers, and various sensor types. We offer neodymium round magnets in a range of thicknesses and sizes, with different coatings such as zinc, nickel, silver, gold, epoxy resin, etc.

Surface Treatment of Strong Disc NdFeB Magnets

Durable neodymium disc magnets are prone to corrosion, necessitating surface coatings. Commonly used coatings include zinc plating, nickel, eco-friendly zinc, eco-friendly nickel, nickel copper-nickel, eco-friendly nickel copper-nickel, and epoxy coating.

Surface	Coating	Thickness (Microns)	Color	Resistance
Passivation		1	Silver Grey	Temporary Protection
Nickel	Ni+Ni	10-20	Bright Silver	Excellent Against Humidity
Nickel	Ni+Cu+Ni	10-20	Bright Silver	Good Against Salt Spray
Zinc	Zn	8-20	Bright Blue	Excellent Against Salt Spray
Zinc	C-Zn	8-20	Shinny Color	Superior Against Humidity
Tin	Ni+Cu+Sn	15-20	Silver	Superior Against Humidity
Silver	Ni+Cu+Ag	10-20	Silver	Superior Against Humidity
Gold	Ni+Cu+Au	10-20	Gold	Temporary Protection
Copper	Ni+Cu	10-20	Gold	Excellent Against Humidity&Salt Spray
Epoxy	Epoxy	15-25	Black, Red, Grey	Excellent Against Humidity, Salt Spray, Superior Against Solvents, Gases, Fungi and Bacteria, FDA Approved
	Ni+Cu+Epoxy			Excellent Against Humidity
	Zn+Epoxy			Resistance
Parylene	Parylene	5-20	Grey	Excellent Against Humidity
Chemical	Ni	10-20	Silver Grey	Excellent Against Humidity

The Magnetization Direction of Powerful Neodymium Disc Magnets

The magnetization direction of powerful NdFeB disc magnets is typically categorized as axial or diametrical, determined by the desired working face. Specify your magnetization preference when placing an order.

Custom Round Shaped Rare Earth Disc Magnets for Sale

NdFeB magnets stand as unique, non-standard rare earth magnetic products. Sintered Nd-Fe-B material, with its excellent machinability, allows customization into various sizes of round shaped neodymium disc magnets. No molds are required for crafting robust neodymium disc magnets, and we cater to orders of any quantity, whether small or large.

The Maximum Working Temperature of Neodymium Disk Magnets for Each Grade

Neodymium Material Grade	Maximum-Working Temp.	Curie Temp.
N（N35,N38,N40,N42,N45,N48,N50,N52）	176°F (80°C)	590°F (310°C)
N-M（N35M,N38M,N40M,N42M,N45M,N48M,N50M,N52M）	212°F (100°C)	644°F (340°C)
N-H（N35H,N38H,N40H,N42H,N45H,N48H,N50H）	248°F (120°C)	644°F (340°C)
N-SH（N35SH,N38SH,N40H,N42SH,N45SH,N48SH）	302°F (150°C)	644°F (340°C)
N-UH（N28UH,N30UH,N33UH,N35UH,N38UH,N40UH,N42UH）	356°F (180°C)	662°F (350°C)
N-EH（N28EH,N30EH,N33EH,N35EH,N38EH,N40EH）	392°F (200°C)	662°F (350°C)
N-AH（N28AH,N33AH,N35AH,N38AH）	428°F (230°C)	662°F (350°C)
